Overview of the Conversion and Validation Process

Of course, all request values are strings—after all, the client browser sends the strings that the user supplies.
A conversion process transforms the incoming strings to those types.
The converted values are not immediately transmitted to the beans that make up the business logic.
Instead, they are first stored inside the component objects as local values.
After conversion, the local values are validated.
First, the user fills in a field of a web form.
When the user clicks the submit button, the browser sends the value to the server, using an HTTP request.
We call this value the request value.
In the Apply Request Values phase, the JSF implementation stores the request values in component objects.
A value stored in the component object is called a submitted value.
After all local values have been validated, the Update Model Values phase starts, and the local values are stored in beans, as specified by their value references.
JSF first converts and validates all user input.
If errors are found, the page is redisplayed with the values that the user entered so that the user can try again.
The Update Model Values phase starts only if all validations are successful.

Using Converters

Converters which remains an important aspect in converting the user input to the one that is stored in the Mode.
There are two types.

JSF already comes with a bunch of Standard Converters for most of the common conversion process.

BigDecimalConverter – Used to convert the user input string values into values of type java.math.BigDecimal
BigIntegerConverter – Used to convert the user input string values into values of type java.math.BigInteger
BooleanConverter – Used to convert the user input string values into values of type java.lang.Boolean
ByteConverter – Used to convert the user input string values into values of type java.lang.Byte
CharacterConverter – Used to convert the user input string values into values of type java.lang.Character
DateTimeConverter – Used to convert the user input string values into values of type java.util.Date with a default format.
DoubleConverter – Used to convert the user input string values into values of type java.lang.Double
EnumConverter – Used to convert the user input string values into values of type java.lang.Enum
FloatConverter – Used to convert the user input string values into values of type java.lang.Float
IntegerConverter – Used to convert the user input string values into values of type java.lang.Integer
LongConverter – Used to convert the user input string values into values of type java.lang.Long
NumberConverter – Used to convert the user input string values into values of type java.lang.Number
ShortConverter – Used to convert the user input string values into values of type java.lang.Short

Example:By specifying the type as 'percentage', the display value will have a '%' symbol followed by the original value.

Example:For formatting date and time, we have to set the type as 'date'. Whether the style of the date to displayed (short, medium, long) is specified in the 'dateStyle' attribute.

Attributes of the f:convertNumber Tag

Attributes of the f:convertDateTime Tag

Using Validators

Validation is the process whereby editable component data is validated against rules or conditions before the data is updated into the model layer.
For example, an input field might have a minimum and maximum length.
If the component data cannot be validated or does not pass the validation rules, the model will not be updated.
There are two types.

JSF already comes with a bunch of Standard Validators for most of the common validation process.

Conversion Errors:

When a conversion error occurs, the JSF implementation carries out the following actions:

The component whose conversion failed posts a message and declares itself invalid.
The JSF implementation redisplays the current page immediately after the Process Validations phase has completed.
The redisplayed page contains all values that the user provided—no user input is lost.
Give an ID to the component and reference that ID in the h:message tag.
As of JSF 1.2, you also need to supply a component label that is displayed in the error message:
The h:message tag takes a number of attributes to describe the appearance of the message.
A message has two versions: summary and detail.
By default, the h:message tag shows the detail and hides the summary.
JSF validation model defines a set of standard classes for validating the UI components.
The JSF library defines a group of core tags that corresponds to javax.faces.validator.Validator implementations.
Apart from the standard error messages validation model allows us to define the custom validations.
Validations in JSF can be categorized into Imperative and Declarative.

Declarative Validations

The validations that are fired using JSF standard validators or Bean validators fall under declarative type.
Examples for JSF standard validators are Length validator, Required validator etc..
Consider an example for standard validator.

Step - 01 Create mobile.xhtml as

Step - 02 Output

Imperative validation

The standard validation messages would not be sufficient in all the cases and sometimes may require complex validations.
Imperative validation allows users to do this by…
Firing the validation from the Bean method
Use annotation @FacesValidator in the class during runtime
In this type of validation we write a method in the bean to validate the UIComponents and invoke this method from the jsf page through a validator attribute in the inputText tag.
Now lets see consider an example of firing a validation from the Bean.

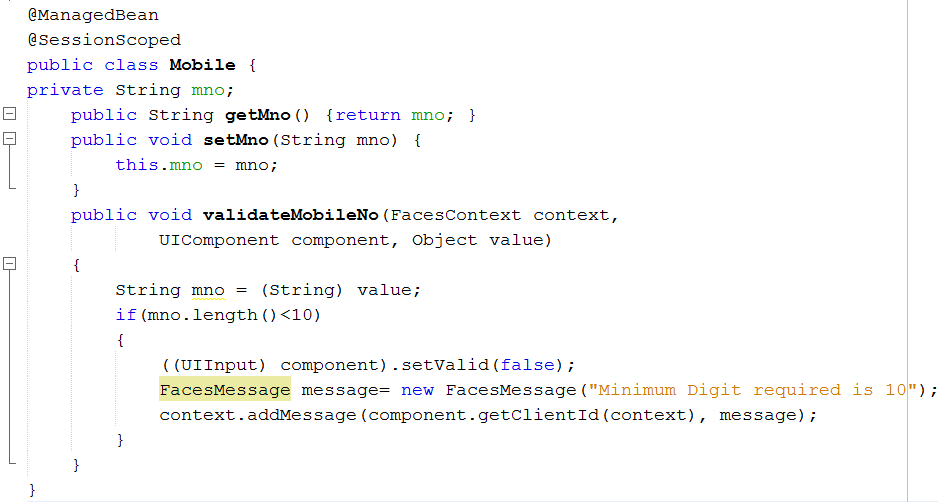

Step - 01 Create Managed Bean

Step - 02 Create XHTML page

Step - 03 Output
